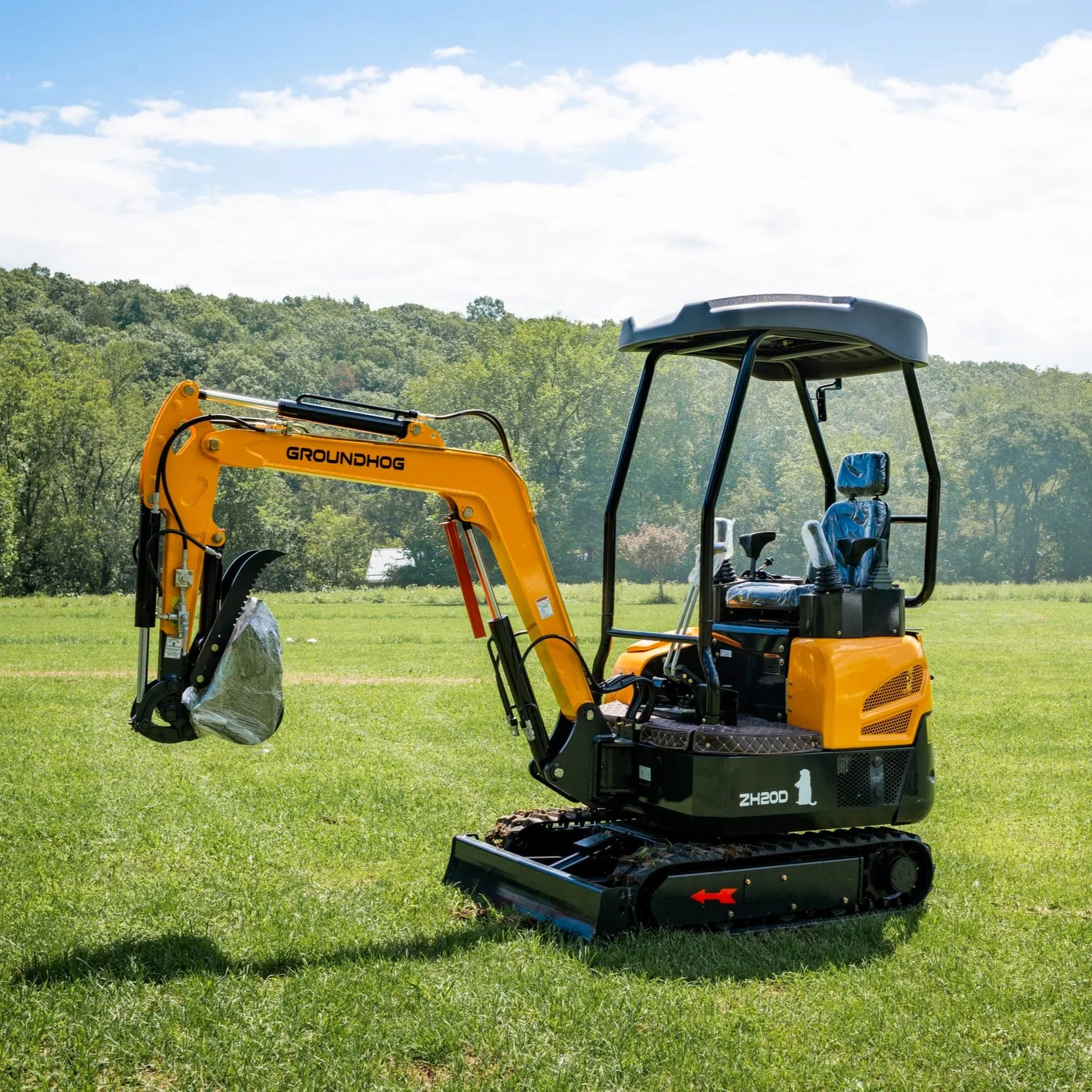

ZH20d

Starting at $16,900

MSRP on entry package, transportation and preparation fees may vary based on selection.

All ZH20D models come equipped with a 20 HP Kubota D722 diesel engine, 4 post canopy, mechanical joysticks and glow plugs.

  • Operating Weight – Rubber Tracks 3000 lbs

    Operating Weight – Steel Tracks 3700 lbs

    Engine Kubota D722

    Engine HP 20 HP

    Travel Speed 3.5km/h

    Overall Dimension 100″ x 37″ x 45″

    Machine Width 43″

    Machine Height 7’2″

    Ground Clearance 6″

    Track Length 54″

    7″ Track Size 180x72x41″

    9″ Track Size 230x72x41″

    Track To Blade 60″

    Track Width 7″

    Track Height 12.5″

    Max Digging Depth 6’7″

    Max Digging Height 103″

    Max Dumping Height 73″

    Max Reach 10’1″

    Max Digging Radius 10’8″

    Flow Rate 6.8 gpm

    Bucket Size 16″ Tooth

    • Side Swing

    • 2 Speed

    • Retractable Tracks

  • Powertrain Warranty items consist of the engine, both drive motors, hydraulic pump, swing motor, and central pivot valve body. warranty does not cover wear items such as lines, cylinders, tracks, pins, blades, seat, undercarriage, etc.
